Specializing in the production of special precision screws and nuts of various standards such as Chinese standard GB, Japanese standard JIS, British BS, American ANSI and ISO.
At present, the smallest screw diameter that our company can produce is 0.4mm, the shortest is 0.4mm, and the longest is 300CM.

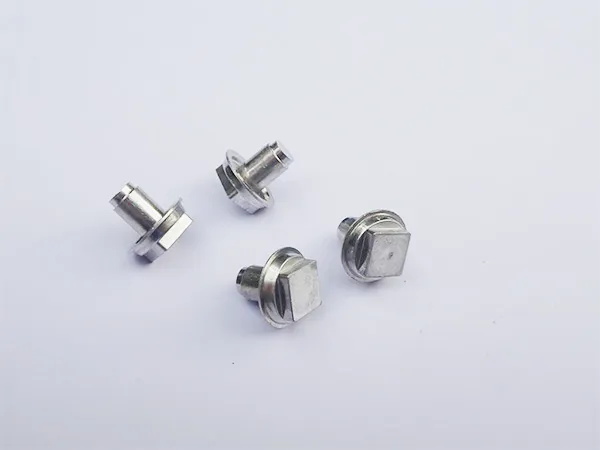

Name Specification: Electrode SQUARE HEAD SHAFT M3-L8
Reference standard: JIS/ANSI/DIN/BSI
Surface Treatment: Degrease
Salt spray time: over 48 hours / HIGH SALT SPRAY: 48H
Range of application: STEEL PLATE / AL PLATE
Product Specifications: M3*PITCH0.5*SHOULDER BODY L12MM*L4MM
Nominal length: L12mm±0.1/ L4MM±0.1
Nominal diameter: 3mm±0.05
Origin: CHINA
Material: AL
What is Electrode Square Head Shaft?
Electrode Square Head Shaft is a specialized shaft material used in electrical discharge machining (EDM). Typically made from highly conductive metals such as copper or copper alloys, it features a square-shaped head design to support electrode stability and fixation. This shaft material is widely utilized in processes like electrical discharge machining (EDM) and EDM drilling to manufacture high-precision components and molds. Due to its excellent conductivity and stable structural design, Electrode Square Head Shaft provides precise discharge effects in fine machining, ensuring product quality and machining efficiency.
Key Features:
1.High Conductivity: Made from highly conductive metals such as copper or copper alloys, ensuring efficient electrical discharge machining (EDM) operations.
2.Square Head Design: Features a square-shaped head that provides stability and secure fixation of electrodes during machining processes.
3.Precision Machining: Enables high-precision machining of intricate shapes and contours, crucial for manufacturing precise components and molds.
4.Durability: Designed to withstand the rigors of EDM processes, offering long-lasting performance and reliability.
5.Versatility: Suitable for various EDM applications including electrical discharge machining (EDM) and EDM drilling, ensuring versatility in manufacturing processes.
6.Enhanced Efficiency: Facilitates efficient material removal and shaping capabilities, contributing to improved productivity and reduced production costs in machining operations.
These features highlight the advantages of Electrode Square Head Shaft in electrical discharge machining (EDM), providing reliability, precision, and efficiency in manufacturing high-precision components and molds.
Applications:
1.Precision Tooling: Essential in the production of precision molds and dies for industries such as automotive, aerospace, and consumer electronics, ensuring intricate and accurate shaping.
2.Medical Device Manufacturing: Utilized in the fabrication of medical implants, surgical tools, and diagnostic equipment where precise machining is critical for patient safety and efficacy.
3.Electronics Industry: Applied in the production of electronic components and microelectromechanical systems (MEMS), facilitating precise machining of intricate features and miniature parts.
4.Tool and Die Making: Integral in tool and die making for the manufacturing of customized tools, jigs, and fixtures used in various industrial processes.
5.Aerospace and Defense: Used in aerospace components such as turbine blades, engine parts, and aircraft structural components, ensuring high-precision machining and reliability in critical applications.
6.Automotive Sector: Employed in automotive manufacturing for the production of precision engine parts, transmission components, and injection molds, enhancing performance and durability.
These applications demonstrate the versatility and importance of Electrode Square Head Shafts in enabling high-precision machining processes across diverse industries, ensuring quality, reliability, and efficiency in manufacturing operations.
Advantages of Using Electrode Square Head Shaft
Using Electrode Square Head Shaft offers several advantages:
1.Enhanced Stability: The square head design provides stable fixation of electrodes during electrical discharge machining (EDM), ensuring precise and consistent machining results.
2.High Conductivity: Made from materials like copper or copper alloys known for their high conductivity, facilitating efficient and effective EDM operations with minimal energy loss.
3.Precision Machining: Enables high-precision machining of intricate shapes and fine details, crucial for manufacturing complex components and molds with tight tolerances.
4.Versatility: Suitable for a wide range of EDM applications including machining hardened materials, producing sharp corners, and creating intricate features not easily achievable with conventional machining methods.
5.Durability: Designed to withstand the harsh conditions of EDM processes, offering durability and longevity in demanding manufacturing environments.
6.Cost Efficiency: Facilitates efficient material removal and shaping capabilities, reducing machining time and overall production costs compared to traditional machining methods.
These advantages highlight the effectiveness of Electrode Square Head Shaft in achieving high-precision, efficient, and cost-effective electrical discharge machining (EDM) operations across various industrial applications.
1. We have more than 20 years of experience in exporting to many countries for example America.Japan.Korea.Germany.France.England etc. In fact, we have 20 years of production experience. When the drawings are confirmed, we will provide customers with professional information to make product assembly smoother.
2. Our company have ISO9000.
3. We can give Proposing Solutions and help our customer to solve any fastner system problem.
4.We can reply you price within 2 hours.
5. We can produce samples for you in 5-7 days.
6. We can give you drawings within 2 hours.
7. Working with us can save your time and money.
8.We can confirm 100% quality in diameter and tolerance.
9.More than 90% are returned customers.
10.We not only produce and sell products ,we also can offer you help in China as friend .
11.I would like to help you to reach your dream in my ability ,give me chance is giving yourself chance.
Our logistics information exchange :
Are you factory ?
We are factory.We not only produce customized hardware we also produce test machine to check quality ourselves.This is our big advantage.
How long is your delivery time?
It is according to the product you need and quantity ,usually in 30 days
Can you provide samples ?
Yes, we can supply samples if we have stock.But if its customized , you need pay us mould fee, sample cost.
What drawings format do you need for production?
2D:PDF, CAD, JPG etc.3D: STP,IGS, STL, SAT,PRT,PT etc.
Can you produce according to the samples?
Yes,we can produce accordingto your samples
What can we do if you have any problem on your production line?
If you have any fastners problem on your production line,we will give you solutions quickly.
Dongguan Qisheng Metal Technology Co., Ltd. is a professional manufacturer of screws and nuts and other fastener products integrating R&D, production, processing and sales. The company is located in the famous manufacturing city in China-Dongguan City, Guangdong Province. The company covers an area of 3,000 square meters.
Specializing in the production of special precision screws and nuts of various standards such as Chinese standard GB, Japanese standard JIS, British BS, American ANSI and ISO. Our equipment is advanced. At present, the smallest screw diameter that our company can produce is 0.4mm, the shortest is 0.4mm, and the longest is 300CM. The materials used are stainless steel SUS304 /SUS410/SUS 430 /SUS620, etc., red copper H95, brass C2700, aluminum 6061, titanium TI 04, etc.
Our products can meet the environmental testing standards of the European Union-ROHS, the United States–California 65 standard, Japan-SONY00259 etc., and even more stringent testing standards. At present, our salt spray test standard can reach up to 2000 hours, and the surface hardness can reach up to HV2000.
Our business policy is to serve every customer with the highest quality and fastest speed.
Please feel free to contact us if necessary.
