Specializing in the production of special precision screws and nuts of various standards such as Chinese standard GB, Japanese standard JIS, British BS, American ANSI and ISO.
At present, the smallest screw diameter that our company can produce is 0.4mm, the shortest is 0.4mm, and the longest is 300CM.
Name Specification: SET SCREW M2*L3
Reference standard: JIS/ANSI/DIN/BSI
Standard number: JIS B1111/ANSI18.6/DIN7981/DIN912
Surface Treatment: BLACK ZINC PALTING
Salt spray time: over 256 hours / HIGH SALT SPRAY: 256H
Product Specifications: M3*PITCH0.5*SHOULDER BODY L12MM*L4MM
Nominal length: L12mm±0.1/ L4MM±0.1
Nominal diameter: 3mm±0.05
Origin: CHINA
Material: LOW CARBON STEEL SWCH18A-22A
Price: RMB 0.05/PCS

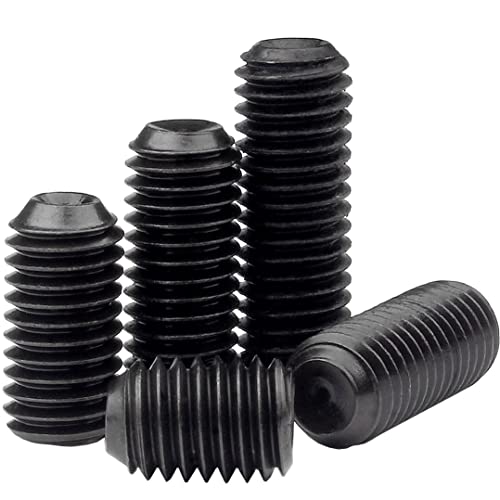

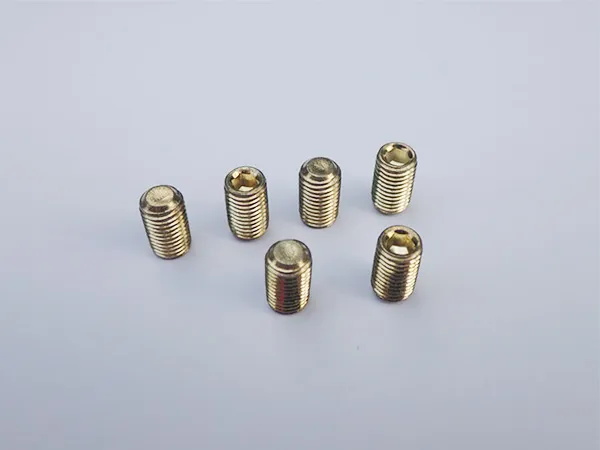

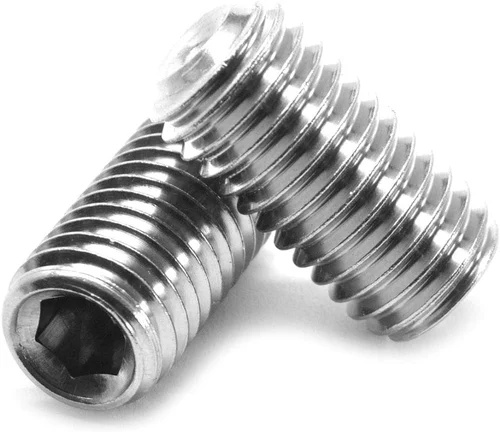

Knurled Cup Point Grub Screw, also known as hexagonal knurled cup head set screw, is a headless, threaded fastener. One end of the screw is cup-shaped (cup point) with a knurled design to enhance its anti-slip and anti-loosening performance during assembly. Its main function is to fix parts on shafts or other components to prevent sliding or rotation.
Function
Fixed positioning: widely used to locate components or prevent mechanical parts from shifting during operation.
Anti-loosening and anti-slip
Knurled Cup Point Grub Screw increases friction through the knurled structure, effectively preventing the screw from loosening due to vibration or load; the cup-shaped end is embedded in the surface of the fixed object to improve contact stability and prevent slipping and displacement. Its headless design fits compactly and is suitable for high-vibration and high-precision positioning occasions.
Not easy to damage the workpiece
Knurled Cup Point Grub Screw adopts a cup-shaped end design with a smooth contact surface. It can provide sufficient locking force while reducing indentations or scratches on the workpiece surface. It is gentler than pointed or conical screws and is suitable for precision equipment or soft materials that require surface protection.
Strong concealment: headless structure, almost flush with the surface after screwing in, suitable for occasions with high appearance requirements.
Material
Low carbon steel SWCH18A-22A
Features: good toughness, easy processing, suitable for most medium and low strength applications, high cost performance.
Surface Treatment

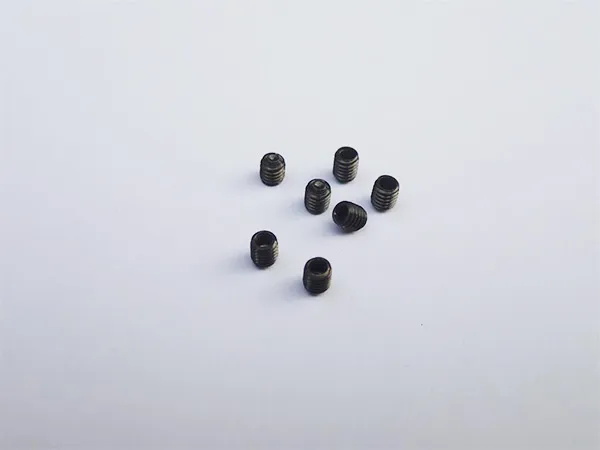

BLACK ZINC PLATING
Beautiful appearance and excellent anti-rust performance.
Salt spray test: more than 256 hours, suitable for high corrosion protection environment.
Head shape and type
Hex socket
Tighten with a hex wrench or hex tool, easy to install, suitable for small space areas.
Headless design, no protrusion on the surface after installation.
Thread Type
Metric Thread
Metric threads such as M2 and M3 are common in Asian and European standards.
Pitch example: 0.5mm.
Reference Standard
JIS B1111 / ANSI 18.6 / DIN7981 / DIN912
Covering Japanese, American, German and other national standards to meet the needs of different customers.
Advantages
The knurled structure enhances friction and prevents loosening;
The cup-shaped end improves contact stability and protects the contacted surface;
A variety of specifications and materials are available to meet personalized needs;
The black zinc treatment on the surface improves corrosion resistance and extends service life;
After tightening, it is well concealed and suitable for products with high appearance requirements.
Application
Electronic products
In electronic products, Knurled Cup Point Grub Screw is often used for positioning and fixing micro transmission shafts, knobs, connectors and other parts. Its compact headless design is easy to embed in a small space. The knurled and cup point structure ensures stable fastening, no loosening, no slipping, and avoids damage to precision parts. It is widely used in smart wearables, mobile phone components, electric motors and sensor structures.
Household appliances
In household appliances, Knurled Cup Point Grub Screw is mainly used to fix motor shafts, knobs, shafts and moving parts, such as fans, washing machines, power tools, etc. Its knurled cup point design can firmly lock parts, prevent loosening and slipping, and the cup-shaped end reduces the indentation on plastic or metal parts, prolongs product life, and improves operating stability. It is suitable for scenes with high vibration and frequent operation.
Mechanical equipment
In mechanical equipment, Knurled Cup Point Grub Screw is often used for precise positioning and fixing of moving or rotating parts such as sleeves, couplings, gears, and slide rails. Its knurled cup point structure can enhance friction and prevent loosening and sliding caused by vibration or load; the cup-shaped end can also reduce damage to the shaft surface, which is suitable for industrial equipment with high-frequency operation and high-precision requirements, and is widely used in automation equipment, CNC machine tools, transmission systems and other fields.
Automobiles and electric vehicles
In automobiles and electric vehicles, Knurled Cup Point Grub Screw is widely used to fix motor shafts, steering systems, brake components, sensor installation and interior parts. Its knurled structure provides strong anti-loosening force to adapt to the vibration environment when the vehicle is running at high speed; the cup-shaped end is close to the workpiece, fixed firmly and not easy to damage the surface of the part, suitable for precision parts positioning and systems with high requirements for structural stability, improving the safety and durability of the whole vehicle.
Hardware connectors
In hardware connectors, Knurled Cup Point Grub Screw is mainly used for the stable connection and positioning of small bearings, handles, door locks, hinges, adjusters and other parts. Its knurled surface enhances the locking friction to prevent loosening, and the cup-shaped end is firmly fixed without damaging the connection surface. Applicable to hardware structures that need to be frequently disassembled or adjusted, ensuring tight, stable and durable connections, and improving the overall assembly quality and service life.
Medical devices
In medical devices, Knurled Cup Point Grub Screw is often used to fix and position precision parts, micro transmission devices, brackets, adjustment mechanisms and other structures. Its compact headless design is suitable for installation in compact spaces, the knurled structure enhances the anti-loosening performance, and the cup-shaped end effectively fixes while reducing the indentation on the surface of the instrument, protecting the precision components from damage. It is widely used in surgical instruments, dental equipment, rehabilitation aids and laboratory instruments to ensure stable structure, precise operation, safety and reliability.
CHEKSINE specializes in the production of Knurled Cup Point Grub Screw and other fasteners, providing:
Customized design services
Drawing development and structural optimization
Standard/non-standard specification mass production
High-quality surface treatment and strict testing process
If you need drawings or samples, or bulk quotations, please contact CHEKSINE - your professional fastener solution provider.
1. We have more than 20 years of experience in exporting to many countries for example America.Japan.Korea.Germany.France.England etc. In fact, we have 20 years of production experience. When the drawings are confirmed, we will provide customers with professional information to make product assembly smoother.
2. Our company have ISO9000.
3. We can give Proposing Solutions and help our customer to solve any fastner system problem.
4.We can reply you price within 2 hours.
5. We can produce samples for you in 5-7 days.
6. We can give you drawings within 2 hours.
7. Working with us can save your time and money.
8.We can confirm 100% quality in diameter and tolerance.
9.More than 90% are returned customers.
10.We not only produce and sell products ,we also can offer you help in China as friend .
11.I would like to help you to reach your dream in my ability ,give me chance is giving yourself chance.
Our logistics information exchange :
Are you factory ?
We are factory.We not only produce customized hardware we also produce test machine to check quality ourselves.This is our big advantage.
How long is your delivery time?
It is according to the product you need and quantity ,usually in 30 days
Can you provide samples ?
Yes, we can supply samples if we have stock.But if its customized , you need pay us mould fee, sample cost.
What drawings format do you need for production?
2D:PDF, CAD, JPG etc.3D: STP,IGS, STL, SAT,PRT,PT etc.
Can you produce according to the samples?
Yes,we can produce accordingto your samples
What can we do if you have any problem on your production line?
If you have any fastners problem on your production line,we will give you solutions quickly.
Dongguan Qisheng Metal Technology Co., Ltd. is a professional manufacturer of screws and nuts and other fastener products integrating R&D, production, processing and sales. The company is located in the famous manufacturing city in China-Dongguan City, Guangdong Province. The company covers an area of 3,000 square meters.
Specializing in the production of special precision screws and nuts of various standards such as Chinese standard GB, Japanese standard JIS, British BS, American ANSI and ISO. Our equipment is advanced. At present, the smallest screw diameter that our company can produce is 0.4mm, the shortest is 0.4mm, and the longest is 300CM. The materials used are stainless steel SUS304 /SUS410/SUS 430 /SUS620, etc., red copper H95, brass C2700, aluminum 6061, titanium TI 04, etc.
Our products can meet the environmental testing standards of the European Union-ROHS, the United States–California 65 standard, Japan-SONY00259 etc., and even more stringent testing standards. At present, our salt spray test standard can reach up to 2000 hours, and the surface hardness can reach up to HV2000.
Our business policy is to serve every customer with the highest quality and fastest speed.
Please feel free to contact us if necessary.
