4 Types of Hexagon Socket Set Screws

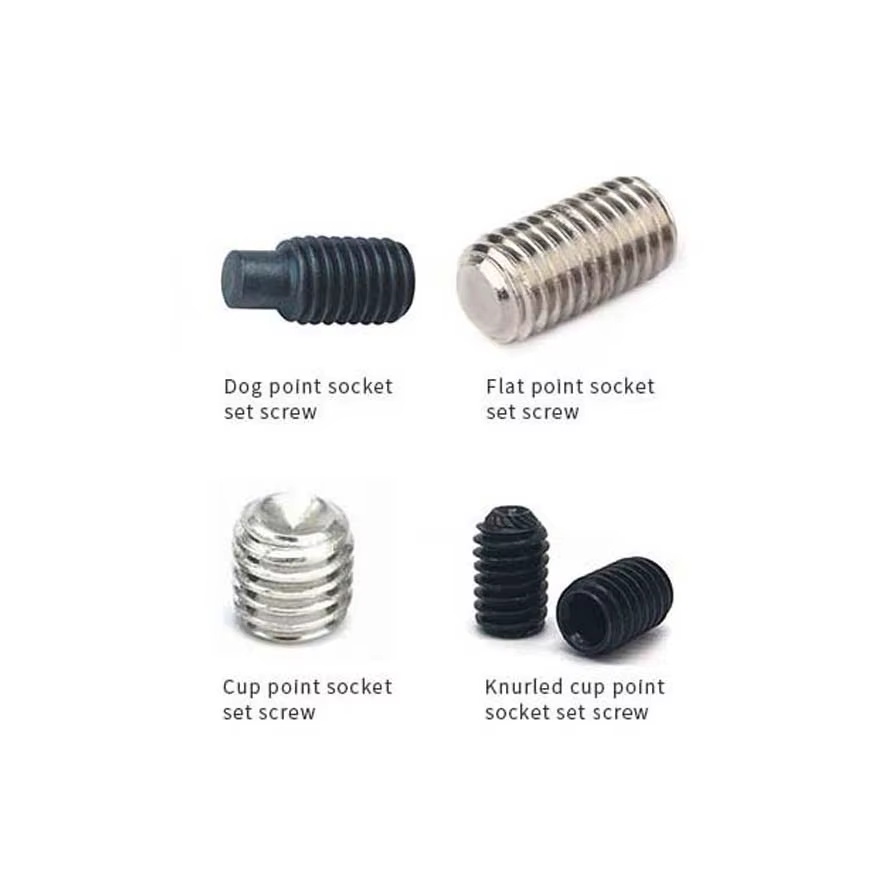

Hexagon socket Set Screws are widely used in mechanical systems to firmly fix parts together and prevent any movement or offset. There are many types of hexagon socket set screws, depending on the design of their tip, each with its specific advantages and application scenarios. This article will introduce four common types of hexagon socket set screws: dog head hexagon socket set screws, cup head hexagon socket set screws, flat head hexagon socket set screws, and knurled cup head hexagon socket set screws, and explain their characteristics and applicable occasions in detail.、

1. Dog head hexagon socket set screw

The dog head hexagon socket set screw (Dog Point Socket Set Screw) has a blunt cylindrical end, commonly known as a "dog head". This design makes it ideal for applications that require precision and do not damage the contact surface. Its end is slightly larger than the diameter of the screw to ensure that it can be properly embedded in a pre-drilled hole or groove.

Advantages:

Precise fit: The cylindrical end avoids damage to the contact surface and ensures a secure fixation.

No damage to the workpiece: Suitable for applications where damage to soft or delicate materials needs to be avoided.

Secure connection: Provides a stable, non-loose connection suitable for Shafts or rotating parts.

Application scenarios:

Electric motors

Automotive parts

Gears and rotating components

2. Cup head hexagon socket set screws

The cup head hexagon socket set screws (Cup Point Socket Set Screw) have a rounded concave end, designed to form a secure connection with the contact surface. This design provides a very strong fixing force by concentrating the pressure in a small area.

Advantages:

Good fixing force: The cup-shaped end provides a strong fixing force and is suitable for applications that require a secure fixation.

Reduce surface damage: The rounded end avoids excessive damage to the workpiece surface.

Efficient anti-loosening: Performs better in high vibration environments and reduces the risk of loosening.

Application scenarios:

Industrial equipment

Automotive assembly

Machinery and gearbox assembly

3. Flat head hexagon socket set screw

The flat head hexagon socket set screw (Flat Point Socket Set Screw) has a flat end that is almost flush with the rest of the screw. This design makes it particularly suitable for applications that require evenly distributed pressure, providing a secure fixation while avoiding excessive penetration into the workpiece surface.

Advantages:

Evenly distributed pressure: The flat head end ensures that pressure is evenly distributed over a large contact surface, reducing pressure concentration on the material.

Suitable for soft materials: This design is ideal for soft metal or plastic materials to avoid damaging the surface.

Reliable and stable: Suitable for places where parts need to be fixed without causing obvious damage or dents to the workpiece.

Application scenarios:

Assembly fixtures

Screw fixing of electronic equipment

Optical and medical devices

4. Knurled Cup Point Socket Set Screw

The Knurled Cup Point Socket Set Screw (Knurled Cup Point Socket Set Screw) combines the cup head design with a knurled surface. The knurled surface increases friction, making the screw more secure against loosening and suitable for high-vibration environments.

Advantages:

Enhanced friction: The knurled surface improves grip and prevents loosening in high-vibration applications.

Strong anti-slip: The increased friction effectively reduces the risk of loosening.

No damage to the surface: Similar to the cup head type, the knurled cup head screw also provides a secure connection without damaging the surface.

Application scenarios:

Machinery with large vibrations

Automotive and electric components

Applications in precision equipment and high-vibration environments

Each type of hex socket set screw—dog head, cup head, flat head and knurled cup head—has its own unique advantages and is suitable for different applications. Dog heads are suitable for precise, non-damaging connections, cup heads provide stronger fixing force and are suitable for high-vibration environments, flat heads are suitable for evenly distributing pressure, and knurled cup heads have enhanced anti-loosening effects and are suitable for high-vibration applications.
