Specializing in the production of special precision screws and nuts of various standards such as Chinese standard GB, Japanese standard JIS, British BS, American ANSI and ISO.
At present, the smallest screw diameter that our company can produce is 0.4mm, the shortest is 0.4mm, and the longest is 300CM.
Name Specification: MICRO SCREW M1.4*L2.5
Reference standard: JIS/ANSI/DIN/BSI
Surface Treatment: YELLOW ZINC PALTING
Salt spray time: over 72 hours / HIGH SALT SPRAY: 72H
Product Specifications: M1.4*PITCH0.3*L2.5MM
Nominal length: L2.5mm±0.1
Nominal diameter: 1.4mm±0.05
Origin: CHINA
Material: LOW CARBON STEEL
What are Micro Fasteners?
Micro fasteners are very small screws and fasteners that are usually used in precision equipment and small machinery. Due to their extremely small size, micro fasteners are widely used in fields with extremely high requirements for size and precision, such as electronics, medical equipment, aerospace and high-tech industries.
Precision
Micro fasteners are usually very precise and can meet subtle installation needs. The tolerance range of the micro screws we provide can reach ±0.02mm, ensuring that each component can be accurately fixed in precision assembly to avoid any looseness or mismatch.
Features
Material and Durability
Micro fasteners are made of a variety of materials, including stainless steel (such as A2, A4), copper, nickel alloy, titanium alloy, etc. Each material has different corrosion resistance, wear resistance and high temperature resistance, which can meet the use requirements in different environments. For example, 304 stainless steel has good corrosion resistance, while titanium alloy is suitable for high strength requirements and extreme environmental conditions.
Load Capacity
Despite their small size, micro screws are designed to withstand relatively high load capacities. Generally speaking, screws with a size of M1 (thread diameter 1mm) can withstand a load of up to about 10-15 kg. The specific load capacity is related to the material, thread type and screw design.
Customizable Sizes and Specifications

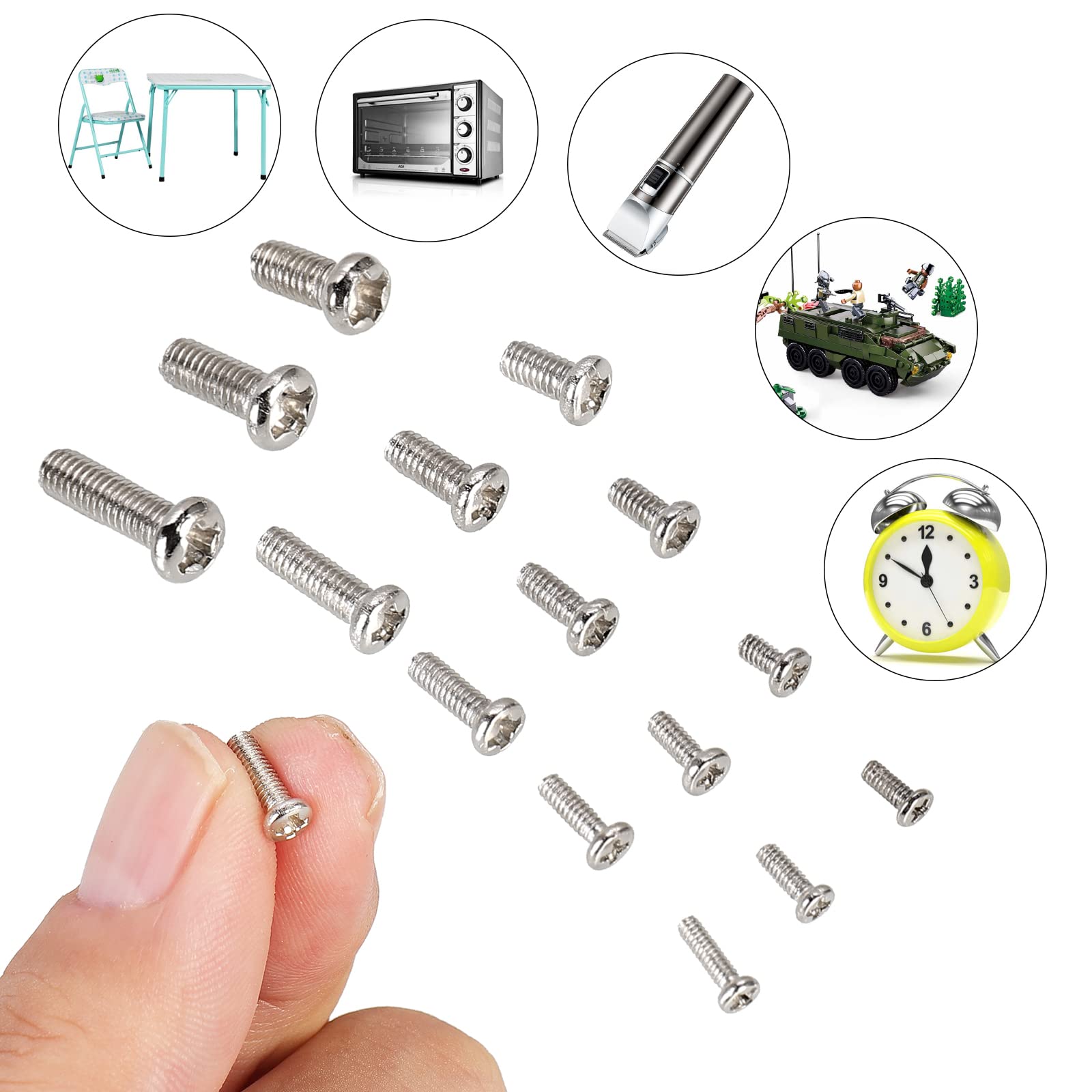

Our micro screws can be customized in size and specifications according to customer requirements. Common micro screw sizes include M0.8, M1, M1.2, M1.6, etc., and can even reach smaller sizes. The thread type can also be selected as needed, such as metric thread, imperial thread, etc.
Surface treatment
The surface treatment of micro fasteners is crucial, and usually includes treatments such as galvanizing, nickel plating, black oxidation, and passivation. These treatments can improve the corrosion resistance and wear resistance of the screws and extend their service life. For example, nickel-plated screws perform well in corrosion resistance and high temperature resistance, while black oxidation treatment can provide better oxidation resistance and decorative effects.
Function
The main function of micro fasteners is to connect and fix micro components to ensure that the components can be firmly assembled together. Their fine design ensures that they can fit into very small spaces and maintain mechanical stability and efficiency, especially in precision instruments and electronic equipment. It plays a vital role.
Scope of use
Summary of the use of Micro Fasteners in micro devices
Micro fasteners are widely used in many high-precision fields due to their small size and precision. They are often used in electronic equipment, medical equipment, aerospace, optical instruments and other fields, and play a key role in connecting and fixing small components.
In electronic products, micro fasteners are used to connect circuit boards and other small components to ensure the stability of internal components of the equipment. In medical equipment, especially in precision tools such as endoscopes and microscopes, micro screws are used to fix important components to ensure the reliable operation of the equipment. Micro fasteners are used to fix lenses and optical elements in optical equipment, while in the aerospace field, they help fix the core components of satellites or drones.
These micro screws not only need to have extremely high precision and load capacity, but also have excellent corrosion resistance, wear resistance and other characteristics. Through fine surface treatment and high-precision manufacturing, micro fasteners can meet the dual requirements of small size and high performance in high-tech industries.
Micro fasteners are used in medical equipment to fix and connect precision parts such as endoscopes, implants, dental instruments, sensors and minimally invasive surgical instruments. They ensure stable and precise operation of equipment, especially in environments where high precision is required. Micro screws offer durability, stability and reliability to meet the rigorous demands of the medical industry.
FAQ
Can the size of micro fasteners be customized?
Yes, we provide customized services in various sizes, and can adjust the size and specifications of micro screws according to your specific needs.
What is the load capacity of micro fasteners?
The load capacity of micro fasteners depends on the material, size and design of the screws. Generally speaking, small screws can withstand a load of 10-15 kg, and the specific load capacity needs to be selected according to the specific application.
What are the material options for micro fasteners?
We provide micro fasteners in a variety of materials, such as stainless steel, titanium alloy, copper alloy and nickel alloy, etc. Each material has different corrosion resistance and durability, suitable for different application scenarios.
Do micro fasteners require surface treatment?
Depending on the use environment, micro fasteners can be surface treated, such as nickel plating, zinc plating, black oxidation, etc., to improve corrosion resistance and wear resistance.
How to choose the right micro fasteners?
When selecting micro fasteners, you need to consider the size requirements of the equipment, load bearing capacity, working environment (such as moisture, corrosiveness, etc.) and the required precision. We can provide professional advice based on your needs.
Are micro fasteners suitable for medical devices?
Yes, micro fasteners are widely used in medical devices such as endoscopes, implants and sensors. Their precision and high durability are very suitable for the needs of the medical field.
How to ensure the quality of micro fasteners?
We ensure that each micro screw meets international standards through strict quality control and testing procedures to ensure that its precision, durability and performance meet customer needs.
1. We have more than 20 years of experience in exporting to many countries for example America.Japan.Korea.Germany.France.England etc. In fact, we have 20 years of production experience. When the drawings are confirmed, we will provide customers with professional information to make product assembly smoother.
2. Our company have ISO9000.
3. We can give Proposing Solutions and help our customer to solve any fastner system problem.
4.We can reply you price within 2 hours.
5. We can produce samples for you in 5-7 days.
6. We can give you drawings within 2 hours.
7. Working with us can save your time and money.
8.We can confirm 100% quality in diameter and tolerance.
9.More than 90% are returned customers.
10.We not only produce and sell products ,we also can offer you help in China as friend .
11.I would like to help you to reach your dream in my ability ,give me chance is giving yourself chance.
Our logistics information exchange :
Are you factory ?
We are factory.We not only produce customized hardware we also produce test machine to check quality ourselves.This is our big advantage.
How long is your delivery time?
It is according to the product you need and quantity ,usually in 30 days
Can you provide samples ?
Yes, we can supply samples if we have stock.But if its customized , you need pay us mould fee, sample cost.
What drawings format do you need for production?
2D:PDF, CAD, JPG etc.3D: STP,IGS, STL, SAT,PRT,PT etc.
Can you produce according to the samples?
Yes,we can produce accordingto your samples
What can we do if you have any problem on your production line?
If you have any fastners problem on your production line,we will give you solutions quickly.
Dongguan Qisheng Metal Technology Co., Ltd. is a professional manufacturer of screws and nuts and other fastener products integrating R&D, production, processing and sales. The company is located in the famous manufacturing city in China-Dongguan City, Guangdong Province. The company covers an area of 3,000 square meters.
Specializing in the production of special precision screws and nuts of various standards such as Chinese standard GB, Japanese standard JIS, British BS, American ANSI and ISO. Our equipment is advanced. At present, the smallest screw diameter that our company can produce is 0.4mm, the shortest is 0.4mm, and the longest is 300CM. The materials used are stainless steel SUS304 /SUS410/SUS 430 /SUS620, etc., red copper H95, brass C2700, aluminum 6061, titanium TI 04, etc.
Our products can meet the environmental testing standards of the European Union-ROHS, the United States–California 65 standard, Japan-SONY00259 etc., and even more stringent testing standards. At present, our salt spray test standard can reach up to 2000 hours, and the surface hardness can reach up to HV2000.
Our business policy is to serve every customer with the highest quality and fastest speed.
Please feel free to contact us if necessary.
